Detecting the illegal/prohibited use of mobile phones during negotiations, examinations, in prisons, hospitals, etc
Protect 1207i description:
The Protect 1207i is a new measuring device which can be successfully used by engineers or counter surveillance specialists as a reliable tool for tracing different digital transmissions such as GSM, Wi-Fi, Bluetooth, etc. New methods of "listening and watching" with the help of modern technologies has become widely spread in our times. For example, a tiny GSM transmitter is accessible at practically any internet spy-shop for only 100-200 USD and can listen to all your conversations in the office or at home. Modern GPS Trackers use the GSM and 3G cellular networks for transmitting the GPS coordinates of a car. A lot of tiny hidden cameras use Wi-Fi for sending the video.And perhaps more importantly the Bluetooth protocol has been specially designed to transmit voices or conversations with high quality at a distance of up to 100 m it can easily be used for bugging.
The sensitivity of a common RF detector (bug detector) is spread along a wide frequency range, usually 3, or even 6-7 GHz. This means the common detector cannot detect such weak and non-continuous signals as Bluetooth, Wi-Fi or Wi-Max. Even more powerful signals like GSM 1800 are also hard to detect because of their low sensitivity at higher frequency ranges.
The only way to reliably detect wireless protocols is to use pre-selector chips (saw filters) which attenuate all other signals except the desired ones. This is the method implemented in the Protect 1207i which has 6 channels for different frequency ranges and can simultaneously detect 6 different kinds of transmissions at a distance much greater than any common RF detectors. Such qualities make the Protect 1207i a very desirable and reliable device during counter surveillance sweeps.
It is recommended that all sources of RF waves are detected in the premises during a search. It is necessary to determine the nature of every source whether it is a regular transmitter like a Wi-Fi access point or it has an unclear origin and thus should be inspected and probably removed.
Protect 1207i features:
Portable device for the inspection and location of wireless sources (Wi-Fi finder, GPS Tracker detector, GSM/3G detector, Bluetooth detector – all-in-one)
6 channels of detection for different kinds of protocols
Detection of GSM/CDMA/3G/LTE/Bluetooth/Wi-Fi/Wi-Max
The channels work simultaneously, so the operator knows what has been found
Can be used for tracing both regular sources and illegal eavesdropping devices (bugs)
6 bar graphs with 10-segments each, for accurate location of RF sources 4 modes: Silent, Vibration, Visual and Listen
2 levels of sensitivity (attenuator)
Extra display shows probable protocol
Durable metallic body
Microprocessor controlled
Setup mode with selection the threshold level for vibration
Searching for the illegal use of mobile signals is becoming an increasingly important task during counter surveillance sweeping. It is connected with the numerous means of eaves dropping that transmit information via mobile networks. The mass production of components for developers, such as GSM, 3G, 4G/LTE and 5G modules, enables them to develop cheap and quick surveillance methods which have ultra-high quality of sound, video or location transmission. Hidden cameras camouflaged as household appliances, toys or interior objects, will most likely transmit data via mobile networks or Wi-Fi. Spy listening devices quite often have a slot for SIM-cards for functioning on a cellular network. A GPS tracker is a device that is installed in a vehicle and informs about its location, these also send coordinates via mobile communication.
iProtect 1217 features:
Able to detect mobile and wireless signals at a much greater distance compared to conventional RF detectors (at least,10 times more)
Selective: interference resistant and with a high sensitivity
Has worldwide coverage of mobile standards – can detect all existing bands of GSM, CDMA, 3G, 4G/LTE and 5G in the range up to 6 GHz
Able to detect all types of wireless signals,including Wi-Fi 2.4 GHz, Bluetooth, Wi-Fi 5 GHz, DECT, ISM 434MHz, ISM 968 MHz and ISM 915 MHz
Detection of at least 26 mobile and wireless bands
Can be adjusted to the frequency allocation of the country of use
A selective multi-band principle of work informs the user of exactly which signals were found
The mode of analysis of a certain band facilitates the physical search of a transmitter
A separate mode for the detection of GPS trackers with history accumulation (TRACKER)
ALARM function warns the operator about exceeding the threshold, both with sound and visually
43 threshold levels for setting optimal sensitivity
Can be set up for specific tasks, for example, for the detection of Wi-Fi only, etc.
Operation modes:
ALL BANDS (detection on all bands)
GROUP (detection on the selected group of bands)
BAND (analysis of a separate band)
TRACKER (detection of GPS trackers)
Two antenna inputs and two antennas in the set for ensuring maximum sensitivity
The high-band directional antenna facilitates locating of transmitters above 2400 MHz
The built-in rechargeable battery provides an operational time of up to 5 hours
ALL BANDS (detection on all bands) GROUP (detection on the selected group of bands) BAND (analysis of a separate band) TRACKER (detection of GPS trackers)
Alarm function:
Visual or audio
Number of alarm threshold levels:
43
Sound signals:
Alarm, depression of buttons
Regions:
US (bands of the USA) EU (European bands) TOTAL (all bands)
Operating and control elements:
Joystick: move left-right, up-down, threshold adjustment, mode selection Button POWER OFF: switch off Button POWER ON: switch on Button ALARM: alarm Button AUDIO: sound Button BANDS: band set up Button BACK: exit to the previous mode Button SAVE (storing the current state)
Power supply source:
USB 5V
Power:
Built-in rechargeable battery 6800 mA*h 3.7 V
Battery operational resource:
Up to 5 hours
Mass:
The device without antenna: 750 g Packed: 1500 g
Dimensions:
The device without antenna: 208 x 86 x 41mm Packed: 27 x 22 x 10 cm

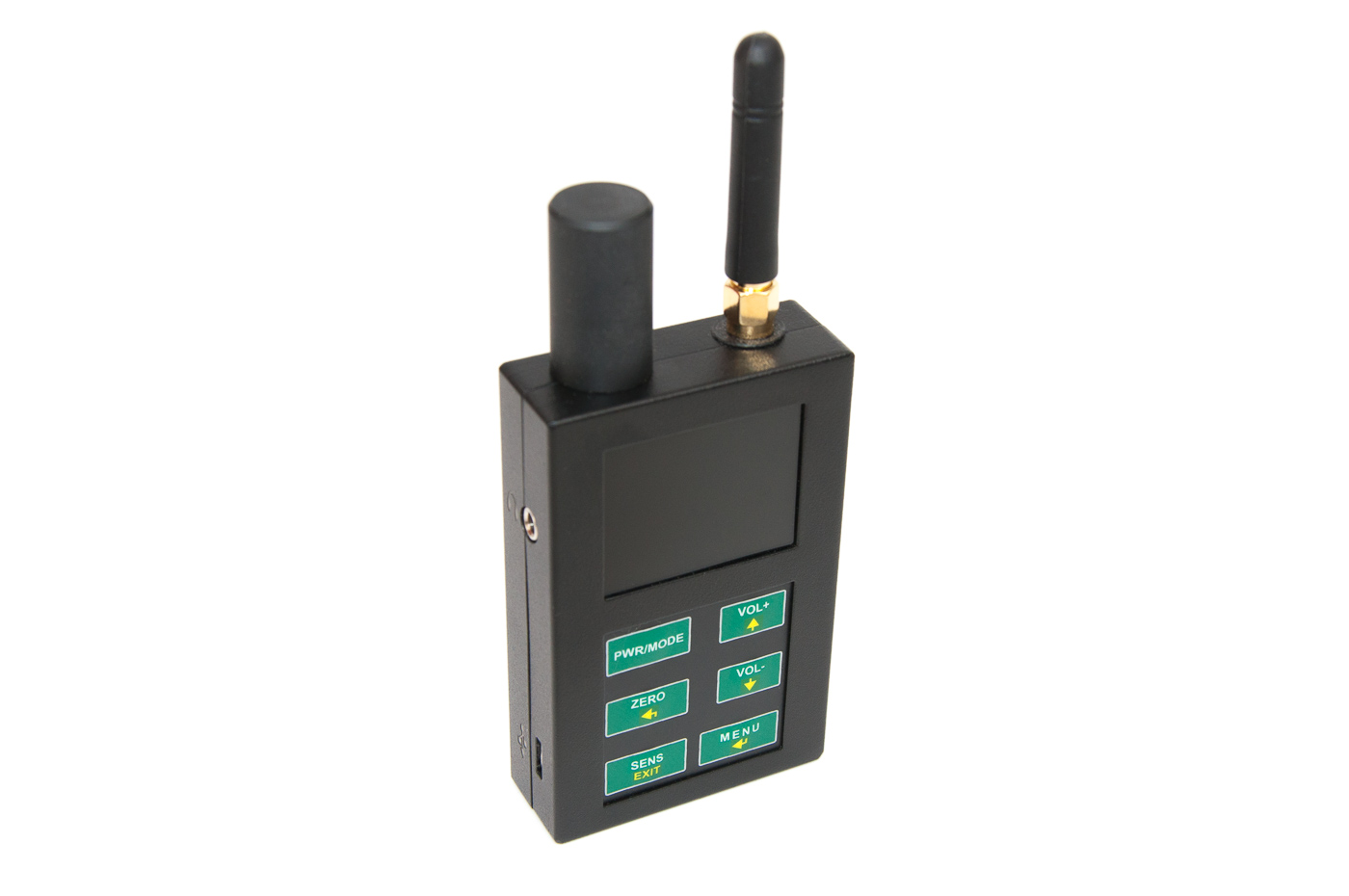

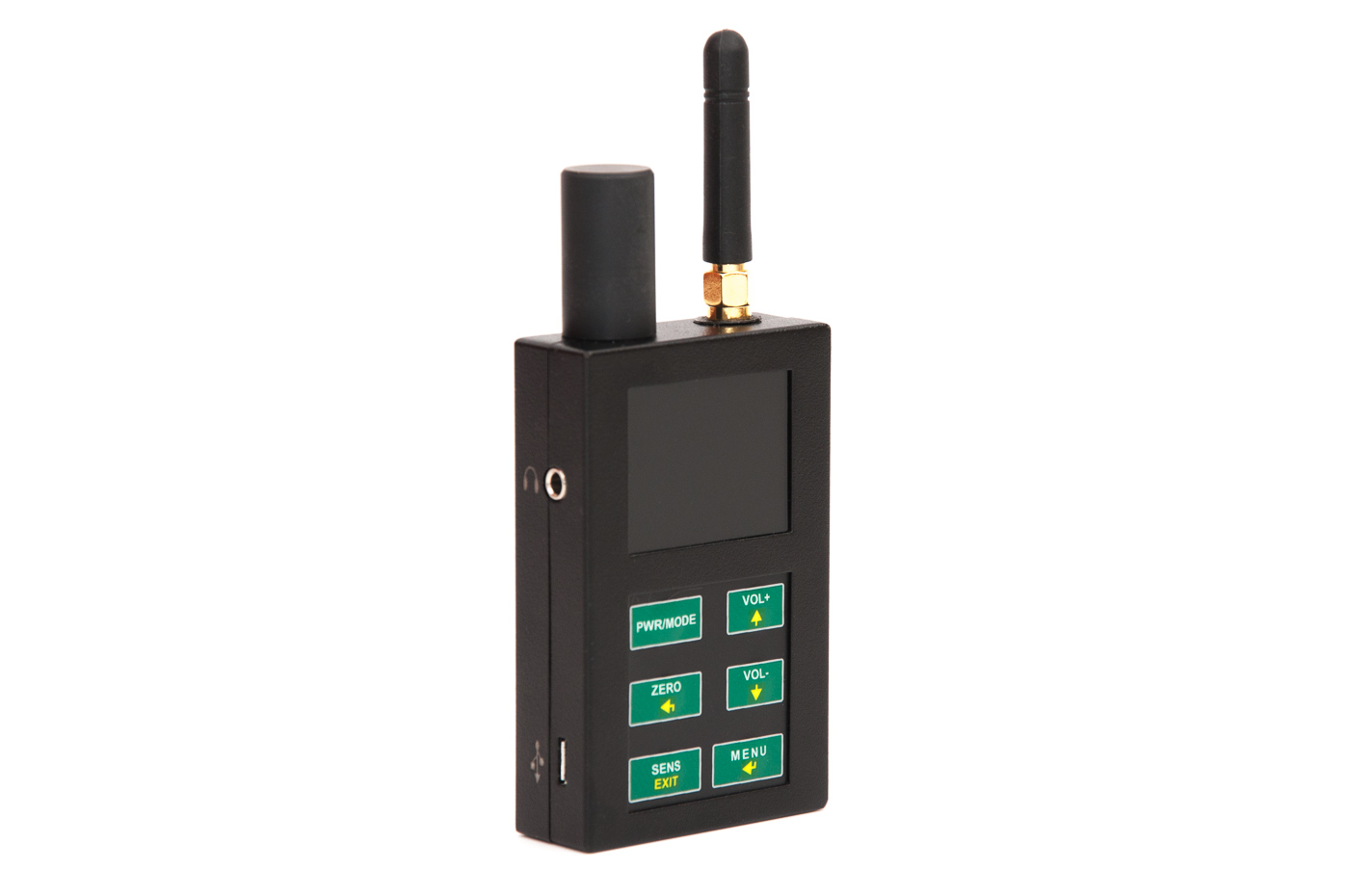

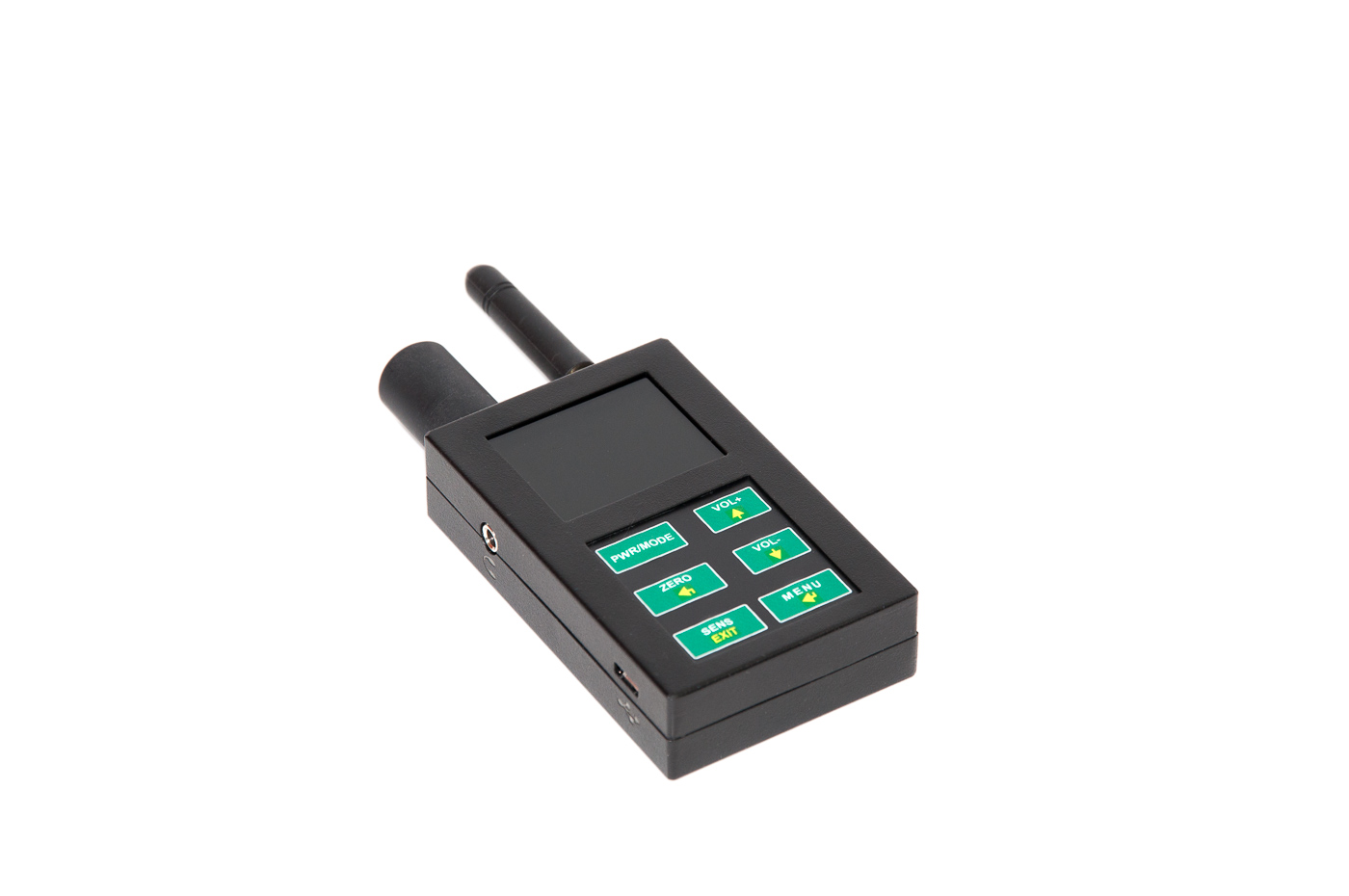

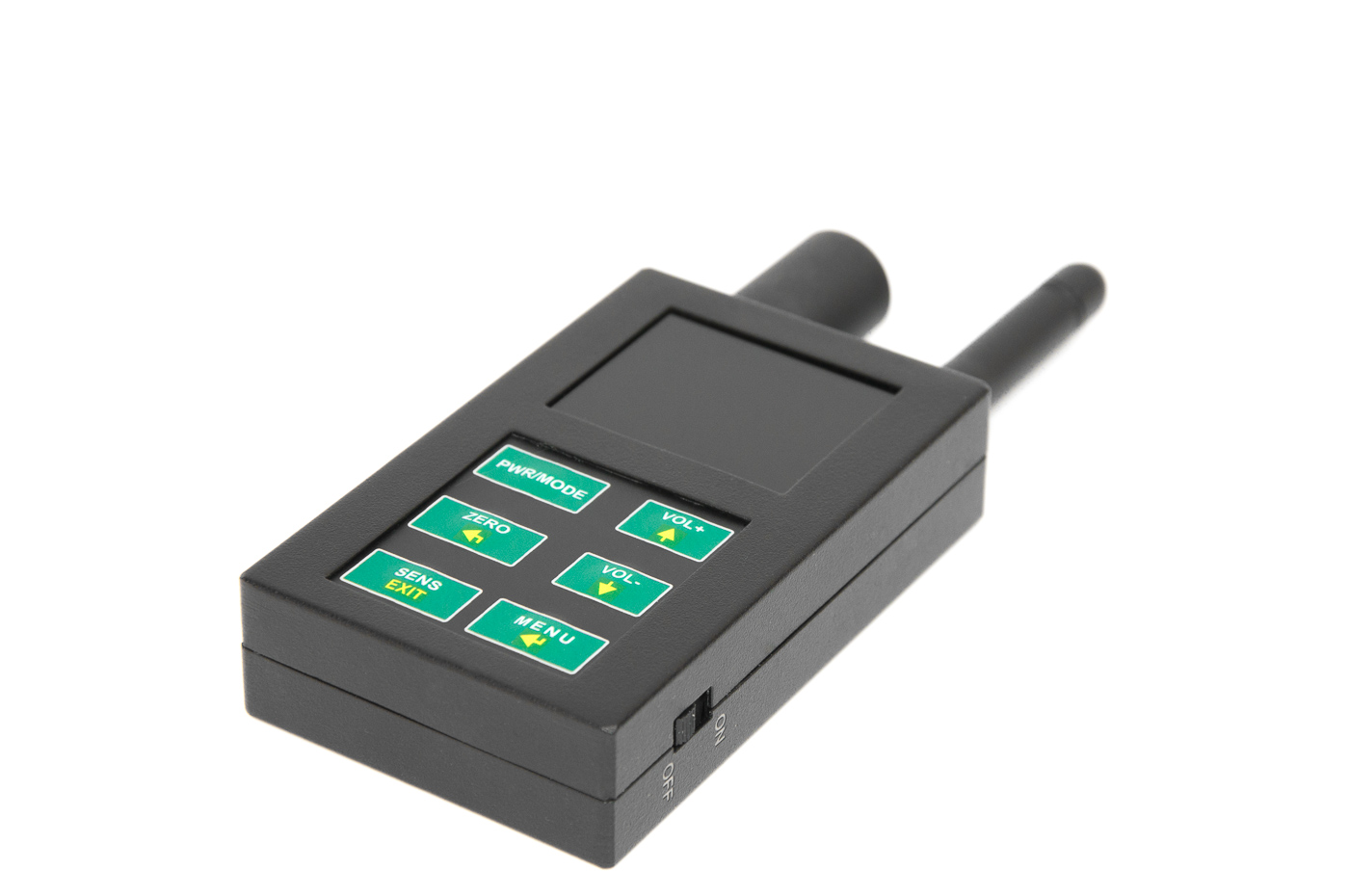

ST-111 is designed for detecting and locating of radio transmitting bugging devices, such as:
GPS trackers while they transmit object coordinates to recipient;
GSM bugs;
Wireless, WiFi video cameras and covert surveillance devices;
Unauthorised WLAN and DECT devices.
The principle of ST 111 operation is based on broadband detection of electrical field ST 111 operates in two main modes: SEARCH and MONITOR. Additional modes include LOG COLLECTION, LOG VIEW, OSCILLOSCOPE and RECORDER.
ST-111 key features:
Separate indication of analogue and pulse signals;
Display and identification of GSM (2G), DECT, WLAN (2.4GHz) signals;
Frequency meter;
Oscilloscope;
Timing diagram;
Special software "ST110 ANALYZER" included with the delivery set;
24/7 monitoring;
Log of events.
Features of included ST-111 analyser software for PC:
Time graphic display of data and the results of operation of the ST 111;
Full remote control from PC;
Extended settings assignment for MONITOR mode;
Load and display textual and graphical information of the operation of the ST 110 in MONITOR mode (Event Log);
Firmware updating over the internet.

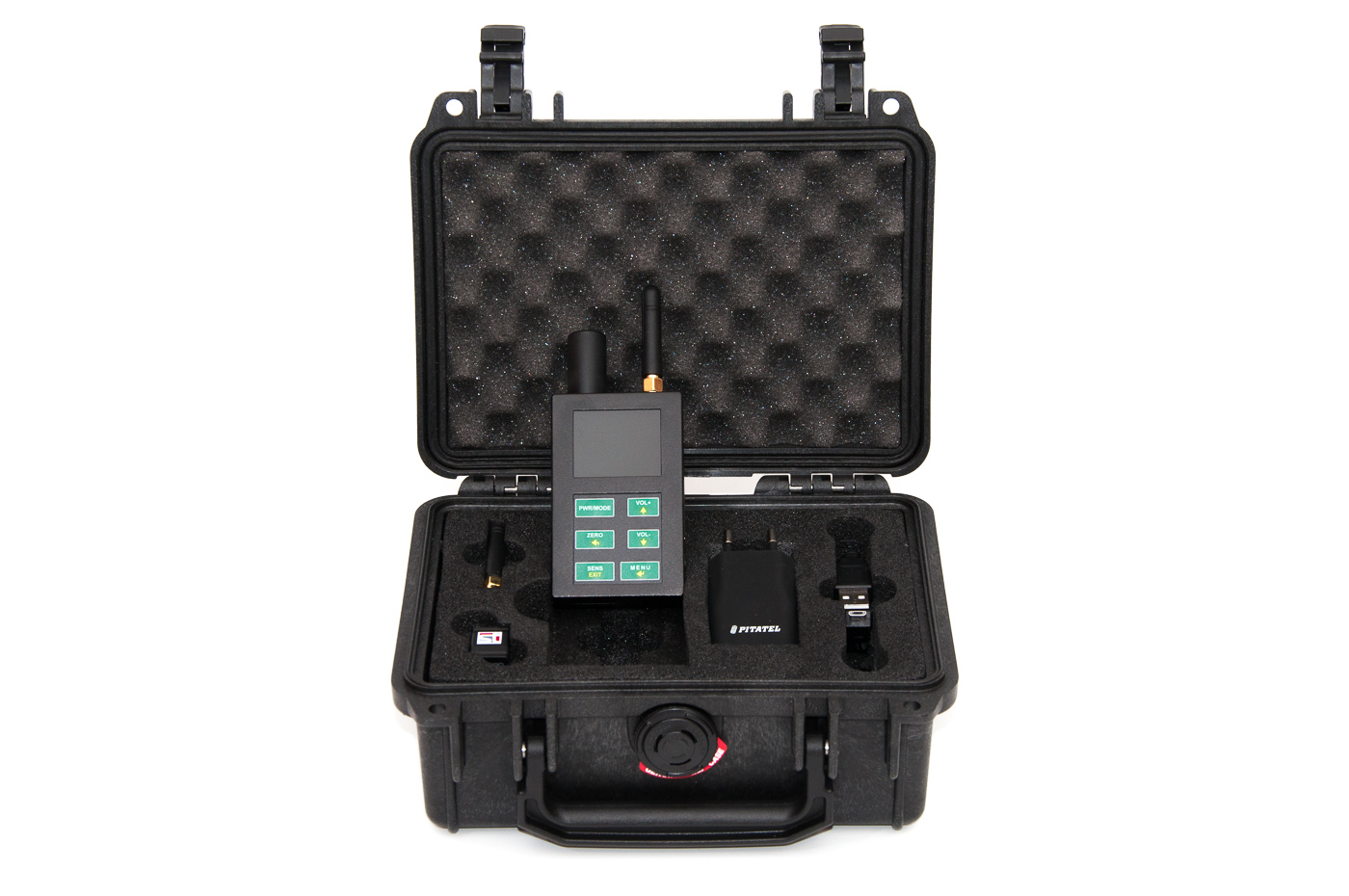

Delivery set:
Main processing unit - 1pcs;
RF antenna - 1pcs;
USB cable - 1pcs;
Power supply and charger adapter - 1pcs;
USB flash drive with PC software - 1pcs;
Options, to be ordered separately:
Directional antenna;
Custom made, Pelican shockproof case.

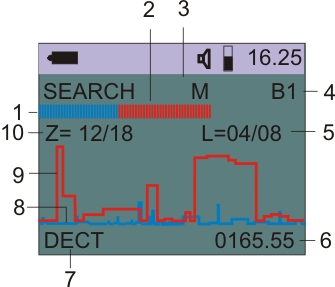

ST-111 Search Mode
This mode is intended for search and detection of RD. Usage of this mode is based on visual estimation of the signal level on the 32-segmental scale. Additionally, a separate indication of continuous and pulse signals, identification signals of GSM, DECT, BLUETOOTH, WLAN standards and stable signal frequency are used.
The possibility of acoustic control by means of headphones is provided.
A 32-segmental indicator of the average power of radio-frequency emission source (is pointed on continuous output radio transmitters).
A 32-segmental indicator of impulse component level of the radio signal (is pointed on impulse radio transmitters, such as GSM, DECT etc.).
The sensitivity of the indication scales («L» – low, «M» – medium, «H» – high).
Frequency bands («B1», «B2») LOW PASS FILTER "LPF" ("F") /short-period indication of set zero scale level («ZERO»);
Current value of impulse/constant component level, comparing with zero level, dB;
Value of periodic signal frequency, MHz
Identified data transfer standards (GSM, DECT, DECT BASE, BLUETOOTH or WLAN
Change in time of signal level with dominant constant component
Change in time of signal level with dominant impulse component
Current value zero level of impulse/constant component, dB

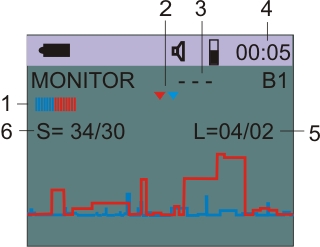

ST-111 RF monitoring mode
This mode is designed for independent operation of ST110 on preset conditions. The information about detected signals are saved by means of a non-volatile memory of the device (9 banks, each for 999 events).
Scheduled work operation is also provided.
Indicators of RF transmitter signal level
Graphic labels of alarm threshold levels
Sign of no permission for recording in EVENT LOG
5-second interval countdown
Current value of impulse/constant signal component level, comparing with absolute level, dB
Value of the alarm threshold levels of impulse/constant signal, dB
ST-111 Event log view mode
This mode is intended for viewing the log of events taking place in the result of the unit running in MONITOR mode.The classification of the events by time, duration or value of the signal level is provided.
Number of viewed bank /Number of banks in action
Number of viewed event/Number of events in bank
Frequency range, in which the alarm happened (B1: 50-2500 MHz, B2: 2500-7000 MHz).
5-second interval countdown
Signal properties in the moment of alarm threshold excess
ST-111 Oscilloscope mode
This mode shows detected signal oscillogram.
Type of configuration (A - automatic M - manual) and the relative value of vertical trace(from 1 to 7)
Oscillogram
Value of horizontal trace in conversion to full-screen values (1, 2, 4, 8, 16 and 32 ms)
ST-111 technical characteristics:
Frequency range No. 1, MHz
50-2500
Frequency range No. 2, MHz
2500 - 7000
Threshold sensitivity, dBm
-75 (50 МHz) -70 (1500 МHz) -50 (2500 МHz)
Threshold sensitivity, W/cm2
2x10-10
Dynamic Range of indication -range No. 1, dB -range No. 2, dB
The system is intended to detect of unauthorized radio communications signal transmission within the supervised area:
Meeting rooms and offices;
Exam rooms and testing facilities;
Prisons and correctional facilities;
Areas with limited use of cell phones, radios, etc.
The main unit of the system is the control module (hereinafter CM). CM performs the reception and analysis of signals at remote, distributed locations.
Detection area of the CM depends on many factors and the estimated average value is from 10 to 50 square meters. The appearance of illegal signals is displayed by light and sound signalling directly on the CM or transmitted via ETHERNET or WLAN to the checkpoint computer.
The checkpoint computer can be any Windows-compatible desktop computer, laptop or tablet that has been installed special software.
Round-the-clock monitoring of radio environment and the event log are provided.
ST-154 detects:
RF bugging devices;
Сell phones and modems (CDMA450, GSM 900, GSM 1800, 3G)*, wireless data transmitters (4G, WLAN, BLUETOOTH 2.4 and 5 GHz), cordless phone systems (DECT) as well as special technical devices using these data transmission standards;
Analog radio transmitters.
*the settings of cellular frequencies, depending on the country and mobile operator, are provided.
Key features:
Simultaneous monitoring from 1 to 128 local areas;
No special training is required;
System is highly configurable;
Data transmission over wired (WLAN) and wireless (ETHERNET) networks;

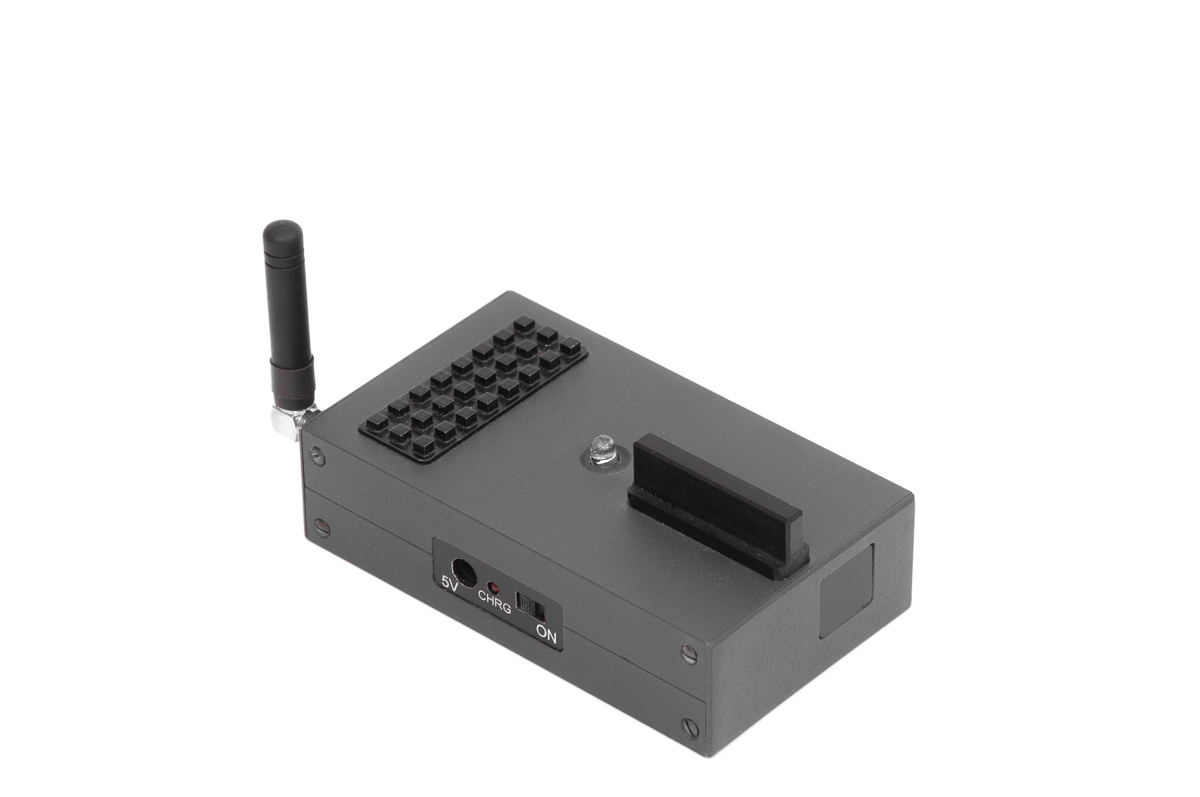

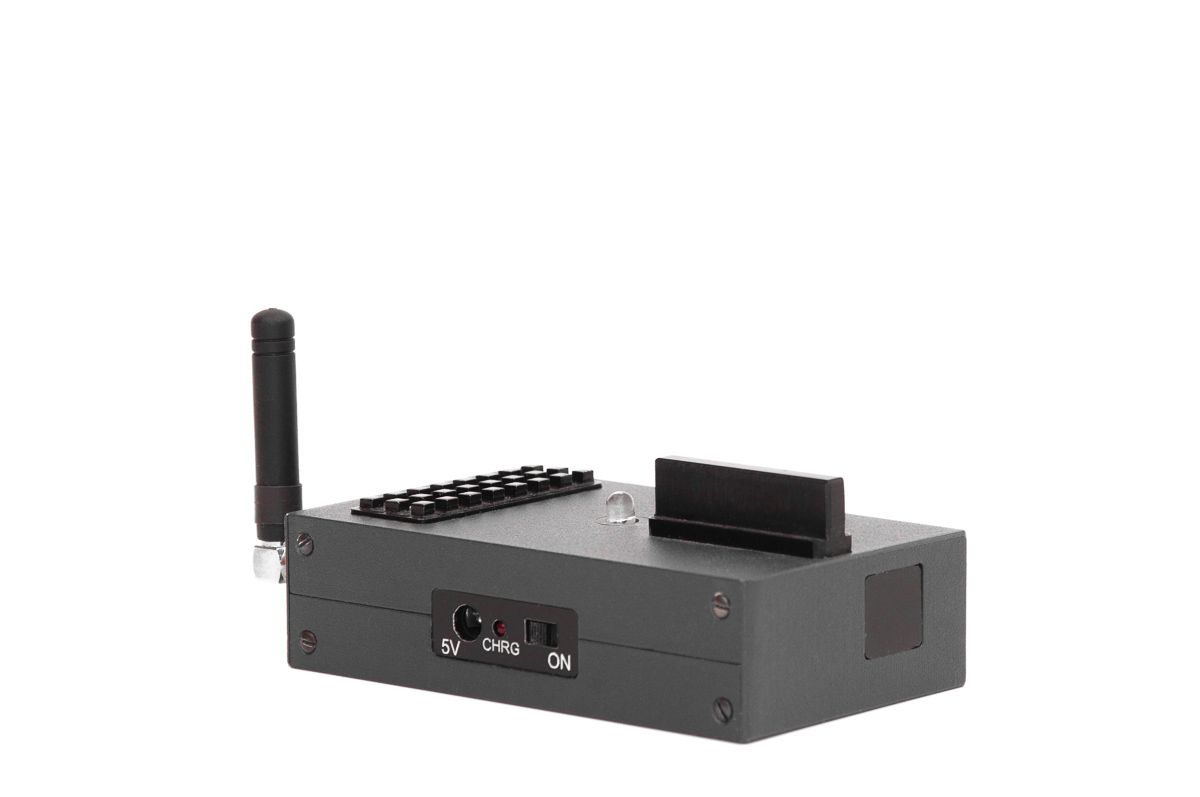

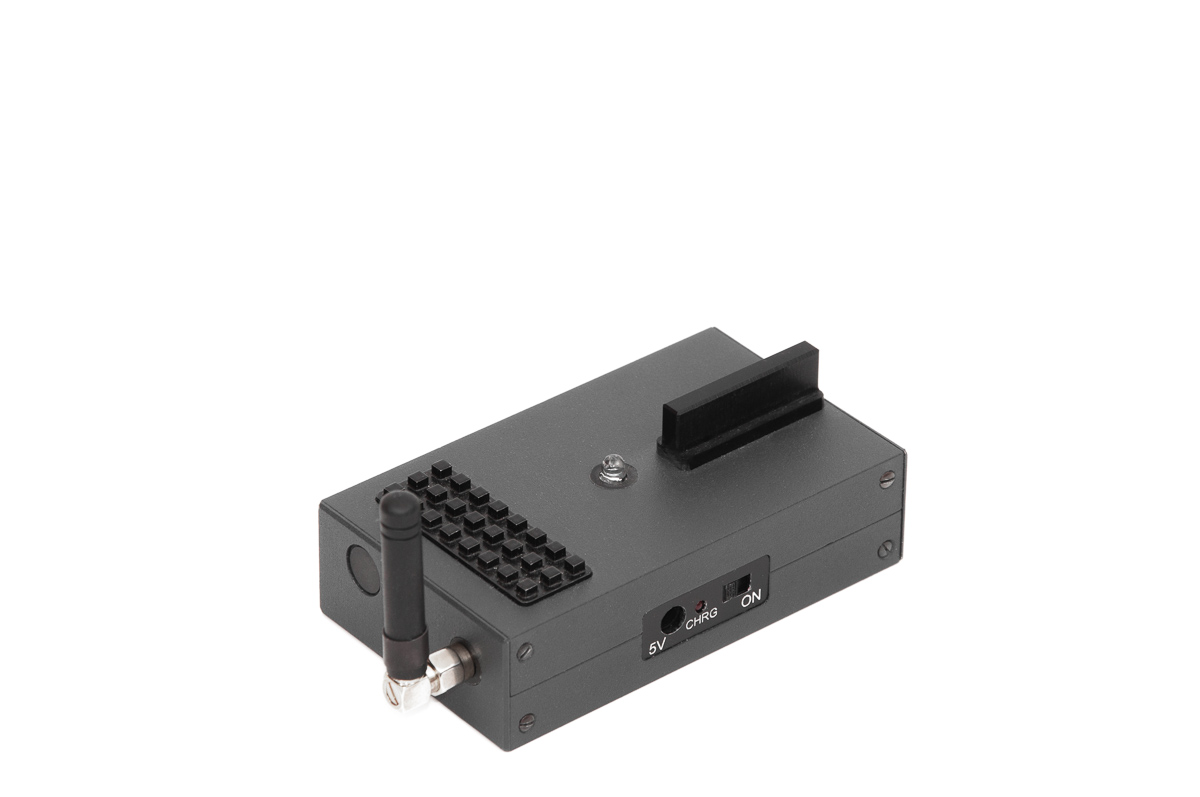

The remote detection module is composed of:
Radio-receiving unit with a separate highly sensitive circuit for 3G band.
Transceiver for providing communication via WLAN (ST154.W) or ETHERNET (ST154.E/ST154.E+POE) networks;
The remote detection module has:
Connector for power supply;
Power switch;
SMA connectors for connecting RF antennas;
LED alarm;
USB connector;
RJ-45 connector (only for ST154.E/ST154.E+POE);
WLAN antenna (only for ST154.W).
Parameters of light and sound alarm are set via the USB port.
ST-154 configuration options:
The minimum configuration consists of the only CM with the light and audible alarm indication (ST154.A). Presetting is performed via the USB port.
This option is intended primarily for the radio environment control within the one room.
To cover more than one room in a multi-story building is a variant with alarm transmission to a checkpoint computer via WLAN (ST154.W) or ETHERNET (ST154.E/ST154.E+POE) using a specially created or existing network.
ST-154 Software features:
The configuration of the CM can be performed both individually and for the whole system. Also, there are many adjustable options. There are special patterns of the ignoring frequencies for the cellular, mobile and wireless data bands.
Each CM is assigned its virtual image that allows watching changes of the radio emission in the real-time mode.
For convenience, virtual images are placed on the screen, for example, in accordance with the floor plan of the supervised area.
The direction finding mode for localization the source of transmission is available when using multiple modules configuration.
The silent logging mode is always enabled and there are a lot of options to sort events depending on required criteria.
Configuration the ETHERNET and WLAN networks allow operating the device in the existing network infrastructure.
Ultrasonic and electromagnetic jammers of sound recording devices, audio recorders and etc.

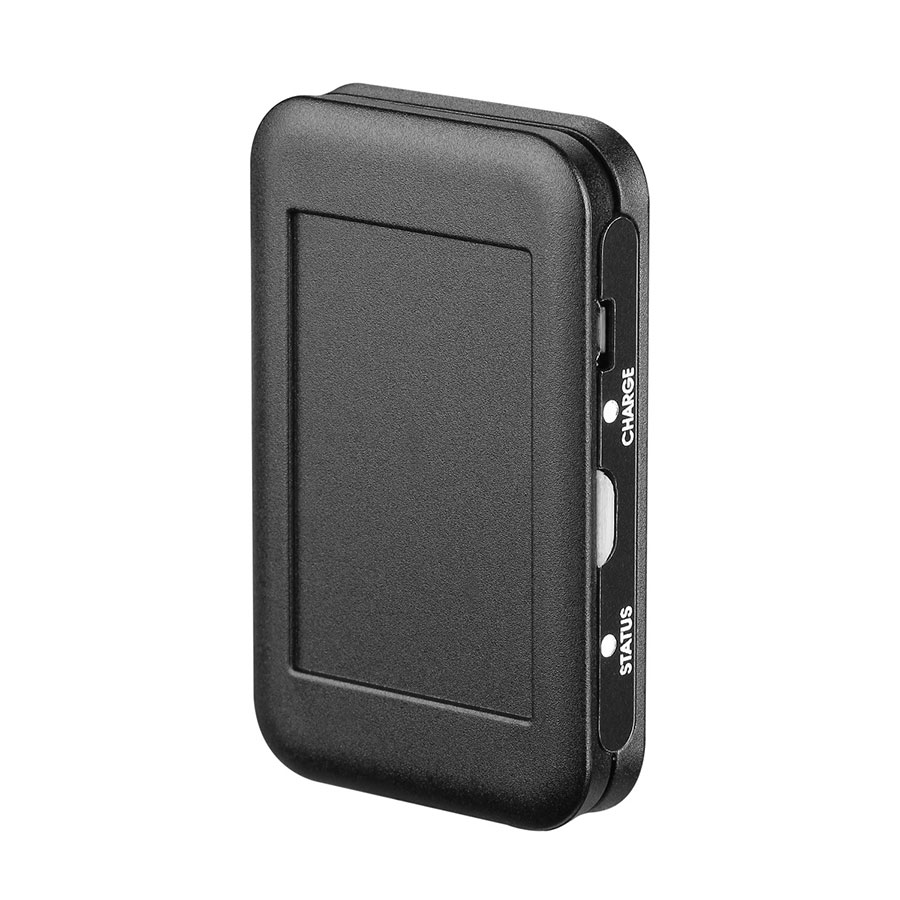

ST-171 features:
Detection logging;
Environment snapshot at detection moment;
Location coordinates logging at detection moment;
Base stations signal spectrogram indication in 900 and 1800MHz, sonic and ultrasonic ranges.

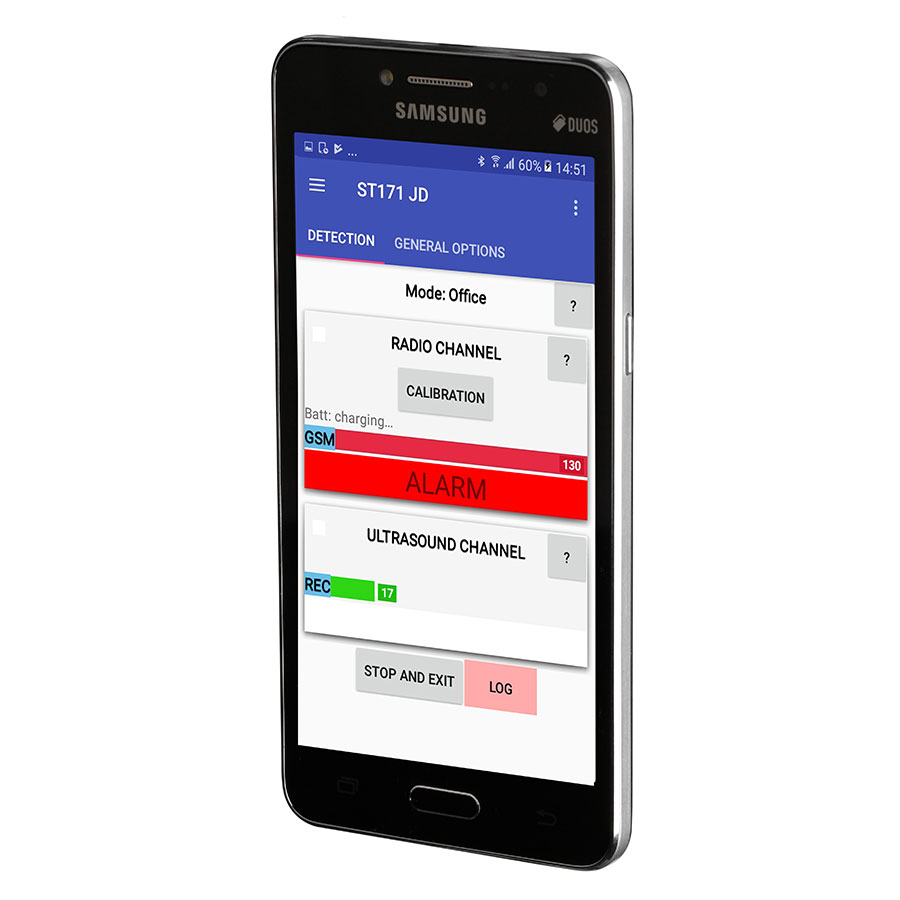

ST-171 is controlled by using of Android device – smartphone or tablet. Data transfer between smartphone and ST-171 is done using BLUETOOTH connection. Alarm signal – vibrating and display indication. Special knowledge for device operation is not required. It is enough to select required operating mode and all detection process will be executed automatically. For fine adjustment, additional advanced settings are provided. The detection range of low power portable cellular networks jammers on open space is up to 10 meters, ultrasonic audio recorder blockers – up to 5 meters.
Application areas:
Visiting the premises, where, imperceptibly for others, it is necessary to detect the presence of cellular jammers or audio recorders blockers.
Stationary control of cars for cellular or GPS receivers jammers presence on entry/exit of the parking area. In this case, ST-171 has to be installed in security booth or any other place nearby the barrier.
Detection of cellular or GPS receivers jammers in cars moving along a highway, street etc.
Location of GPS jammers, deployed in a stolen car. The car can be inside the garage, as well as in an open area.
One of the potential leakage channels is the phone's microphone being able to pick up surrounding acoustics with a high sensitivity. The PHONE SAFE SUMMIT has been developed by information security professionals to protect against this exact type of threat.
