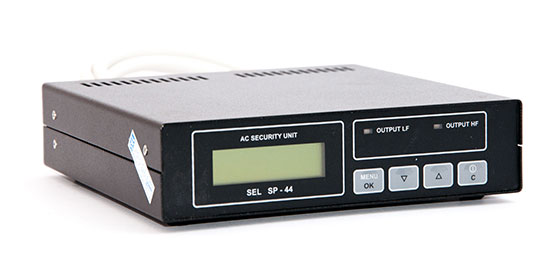

SP-44 for protection of 220 volts mains
The generator is a technical means of active informational protection of the top-secret category objects that provides protection of intercom systems and data transmitting systems that use single-phase 220V with ground net as an information transmitting channel from any type of interception devices by means of producing wide-range noise.
Distinctive features: does not interfere with radio reception and does not influence PC performance and consumer electronics functioning; is not sensitive to peaks of net voltage up to 1kV.
| Technical Characteristics: | |
|---|---|
| Characteristics: | |
| Noise frequency range | 0.01 - 300 MHz |
| Lines protected | 220 V mains power supply, ground |
| Spectral-noise density (at 50 Ohm load relatively 1 µV/ √ kHz) in the frequency bands, not less than: | |
| 0.01 - 1 MHz | 90 dB |
| 1 - 10 MHz | 70 dB |
| 10 - 100 MHz | 50 dB |
| 100 - 300 MHz | 35 dB |
| Noise level adjustment range in the frequency bands, not less than: | |
| 0.01 - 0.5 MHz | 20 dB |
| 5 - 300 MHz | 12 dB |
| Quantity of independent noise signal channels ¹ | 2 |
| Noise quality factor | not less than 0,9 |
| Leakage current through ground line | not more than 1 mA |
| Noise actuation control | manual, remote, RS-485 |
| Operation conditions: | |
| – operating temperature range | from 0 up to+50 °C |
| – relative humidity at + 25 °C | up to 85% |
| – atmospheric pressure | 750 ± 40 mm Hg |
| Power supply: | |
| – AC mains | 220 V ± 10% 50 Hz |
| – power consumption | not more than 12 W |
| Mass-volume: | |
| – dimensions | 172 х 172 х 42 mm |
| – weight | not more than 1.5 kg |
| ¹ – for phase-to-ground and zero-to-ground circuits | |
